MACHINERY
Home
Machinery
PIPE PROCESS

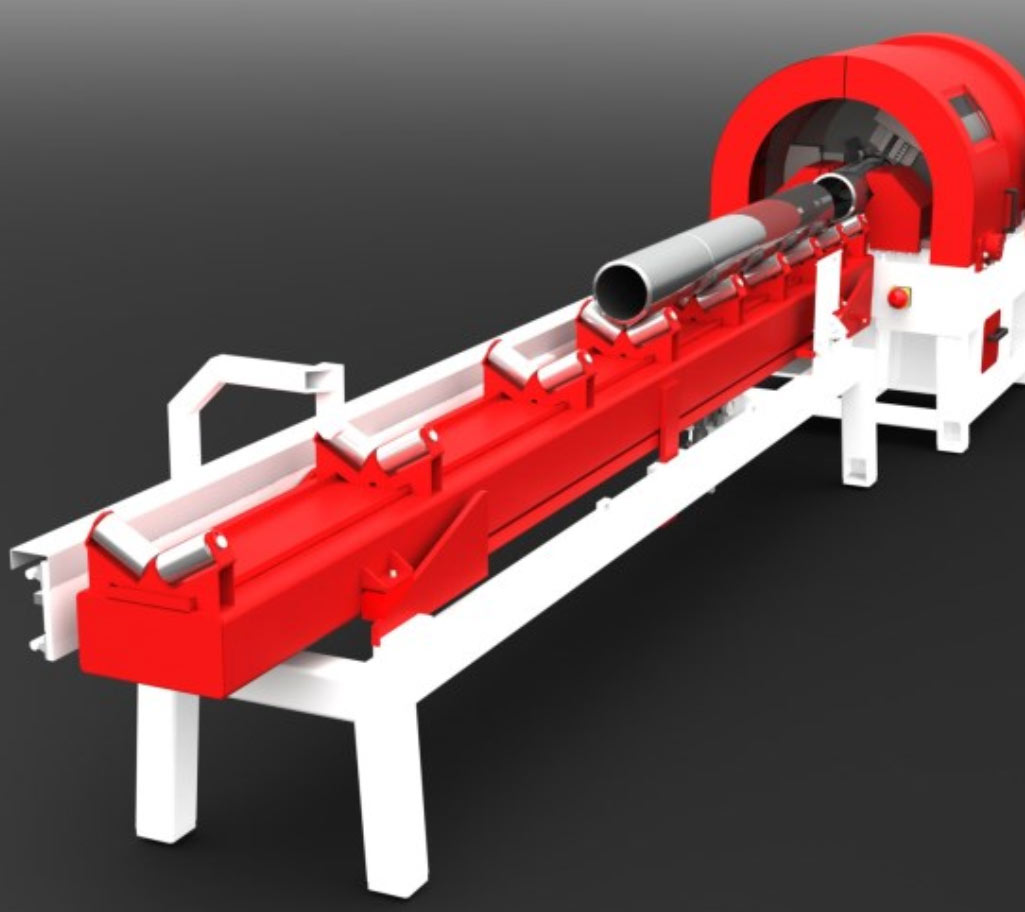

AUTOMATIC PIPE CUTTING & BEVELING MACHINE
Tubes are fed to the machine for cutting.
Total load volume of loading & storage rack is 19 pieces of ΙΈ159 tubes with 4 tons' load capacity.
Storage rack is designed with a proper incline angle to enable the tube roll downward to kick-in position.
The kick-in plates are driven by multiple-units of air cylinder, which can kick the tube onto feeding roller table one after another.
Pipe length fixing is done by AC servo system
SHAFT PROCESS

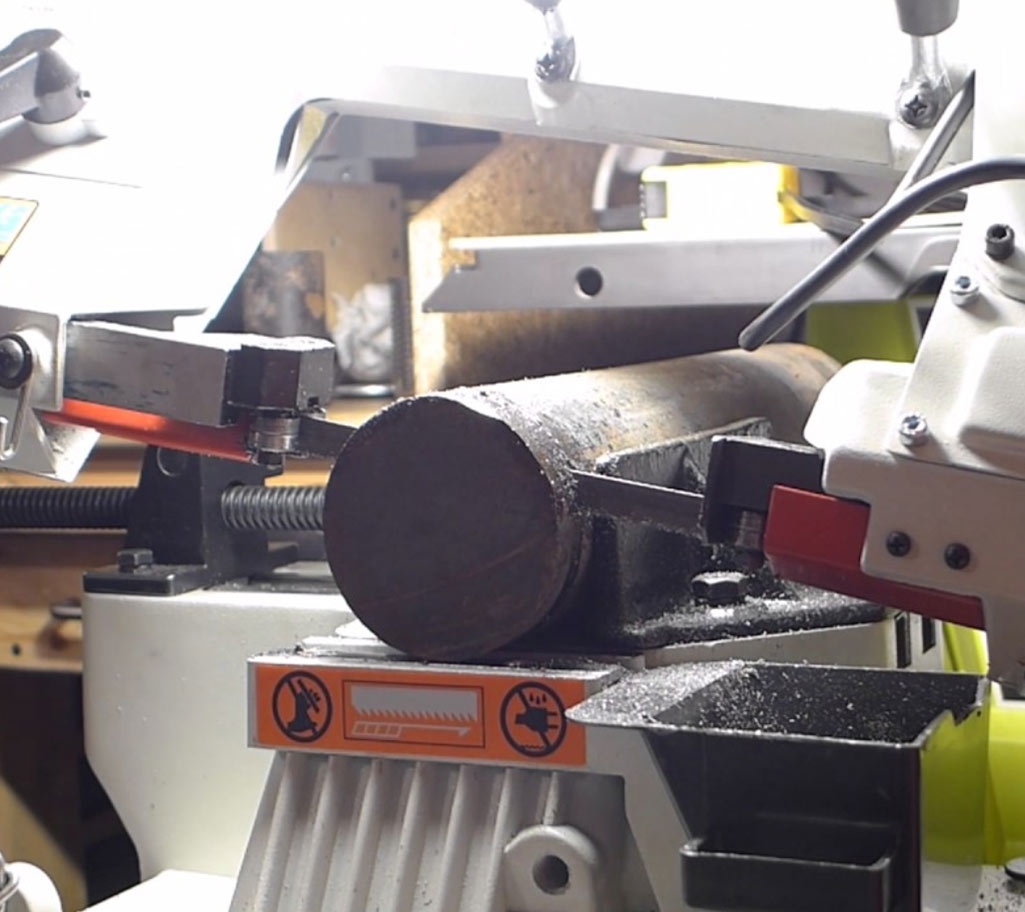

SHAFT CUTTING WITH BENDSAW BLADE MACHINE
Shaft cutting over bendsaw blade machine capacity 20 mm to 150 mm bar.
