SERIES - 6205
STANDARD - IS:8598/4776
TUBE DIA & THICKNESS AS PER IS : 9295 / 12.39
| L | M | H | E.H. | ||||
| 1) | 88.9 | dia | - | 3.25 | 4.05 | 4.85 | - |
| 2) | 114.3 | dia | - | 3.65 | 4.5 | 5.4 | 6.3 |
| 3) | 139.7 | dia | - | 4.5 | 4.85 | 5.4 | 6.3 |
| 4) | 165.1 | dia | - | 4.5 | 4.85 | 5.4 | 6.3 |

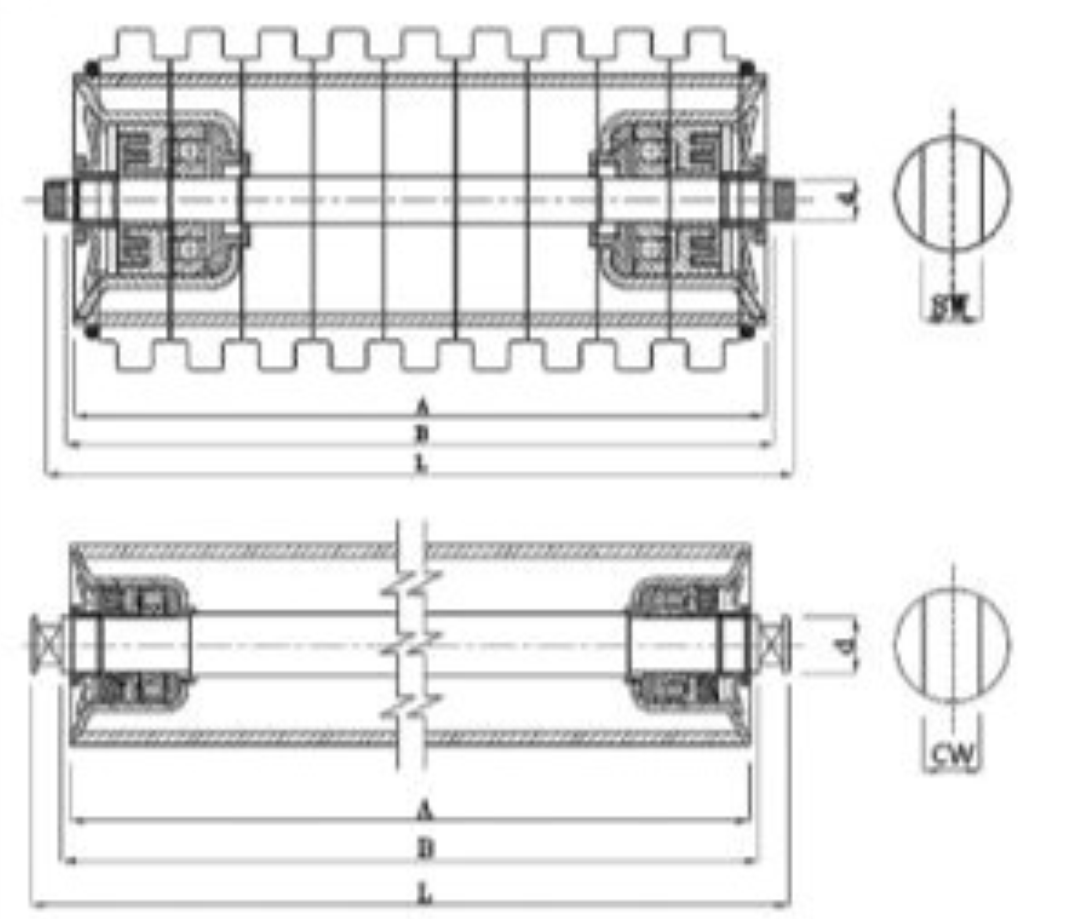

| d | = | 25mm | |||||
| sw | = | 18mm | |||||
| All dimension are in mm. | |||||||
| Belt Width |
Roller Dia |
Flat Top / Return ldler | 2 Roll Top Idler | 3 Roll Top Idler | ||||||||||||
| mm | mm | Dimension in mm | Wt. In Kg. | Dimension in mm | Wt. In Kg. | Dimension in mm | Wt. In Kg. | |||||||||
| BW | D | A | B | L | Rotating Parts |
Total | A | B | L | Rotating Parts |
Total | A | B | L | Rotating Parts |
Total |
| 600 | 88.9 |
700 | 708 | 742 | 7.4 | 10.8 | 350 | 358 | 382 | 4.4 | 6.1 | 235 | 243 | 267 | 3.4 | 4.6 |
| 114.3 | 10.1 | 13.6 | 5.9 | 7.6 | 4.5 | 5.6 | ||||||||||
| 650 | 114.3 | 750 | 758 | 792 | 7.9 | 11.5 | 380 | 388 | 412 | 4.7 | 6.5 | 250 | 258 | 282 | 3.6 | 4.8 |
| 139.7 | 10.7 | 14.4 | 6.2 | 8.1 | 4.7 | 5.9 | ||||||||||
| 750 | 114.3 | 850 | 858 | 892 | 12.0 | 16.1 | 415 | 423 | 447 | 6.7 | 8.7 | 280 | 288 | 312 | 5.0 | 6.4 |
| 139.7 | 15.6 | 19.9 | 8.6 | 10.6 | 6.4 | 7.8 | ||||||||||
| 800 | 114.3 | 950 | 958 | 992 | 13.1 | 17.8 | 465 | 473 | 497 | 7.3 | 9.5 | 315 | 323 | 347 | 5.5 | 7.0 |
| 139.7 | 17.3 | 21.9 | 9.4 | 11.7 | 7.0 | 8.5 | ||||||||||
| 165.1 | 20.4 | 25.0 | 11.0 | 13.4 | 8.2 | 9.8 | ||||||||||
| 900 | 114.3 | 1050 | 1058 | 1092 | 14.4 | 19.5 | 530 | 538 | 562 | 8.0 | 10.6 | 350 | 358 | 382 | 5.9 | 7.6 |
| 139.7 | 18.9 | 24.0 | 10.5 | 13.0 | 7.6 | 9.3 | ||||||||||
| 165.1 | 22.3 | 27.5 | 12.3 | 15.0 | 8.9 | 10.6 | ||||||||||
| 1000 | 114.3 | 1150 | 1158 | 1192 | 15.6 | 21.2 | 600 | 608 | 632 | 8.9 | 11.8 | 380 | 388 | 412 | 6.2 | 8.1 |
| 139.7 | 20.5 | 26.1 | 11.6 | 14.5 | 8.0 | 10.0 | ||||||||||
| 165.1 | 24.2 | 29.9 | 13.7 | 16.6+ | 9.5 | 11.3 | ||||||||||
| 1200 | 114.3 | 1400 | 1408 | 1442 | 18.6 | 25.4 | 700 | 708 | 732 | 10.1 | 13.5 | 465 | 473 | 497 | 7.3 | 9.5 |
| 139.7 | 24.6 | 31.4 | 13.2 | 16.6 | 9.4 | 11.7 | ||||||||||
| 165.1 | 29.0 | 35.9 | 15.6 | 19.0 | 11.1 | 13.4 | ||||||||||
| 1400 | 114.3 | 1600 | 1608 | 1642 | 21.0 | 28.8 | 800 | 808 | 832 | 11.3 | 15.2 | 530 | 538 | 562 | 8.0 | 10.6 |
| 139.7 | 27.8 | 35.6 | 14.8 | 18.7 | 10.5 | 13.0 | ||||||||||
| 165.1 | 32.9 | 40.7 |
17.5 | 21.4 | 12.3 | 14.9 | ||||||||||
| 1500 | 114.3 | 1700 | 1708 | 1742 | 22.2 | 35.5 | 850 | 858 | 882 | 11.9 | 16.0 | 565 | 573 | 597 | 8.5 | 11.3 |
| 139.7 | 29.4 | 37.7 | 11.5 | 19.8 | 11.0 | 13.9 | ||||||||||
| 165.1 | 34.8 | 43.0 | 18.5 | 22.6 | 13.0 | 15.8 | ||||||||||
- Belt Width not covered under IS.
- Rollers with 76.2 mm. 101.6 mm. 127 mm & 152.4 mm. Dia can be made as per Customers specific requirement.
- Impact Idlers will have rubber Rings (Shore Hardness 65 ± 50) press fitted on the Ø76.1, 88.9/114.3 dia tube and locked at both ends.
- Weight of Roller based on medium duty tube.
