SERIES - 6206

STANDARD - IS:8598/4776

TUBE DIA & THICKNESS AS PER IS : 9295

				L	M	H	E.H.
1)	114.3	dia	-	3.65	4.5	5.4	6.3
2)	139.7	dia	-	4.5	4.85	5.4	6.3
3)	165.1	dia	-	4.5	4.85	5.4	6.3

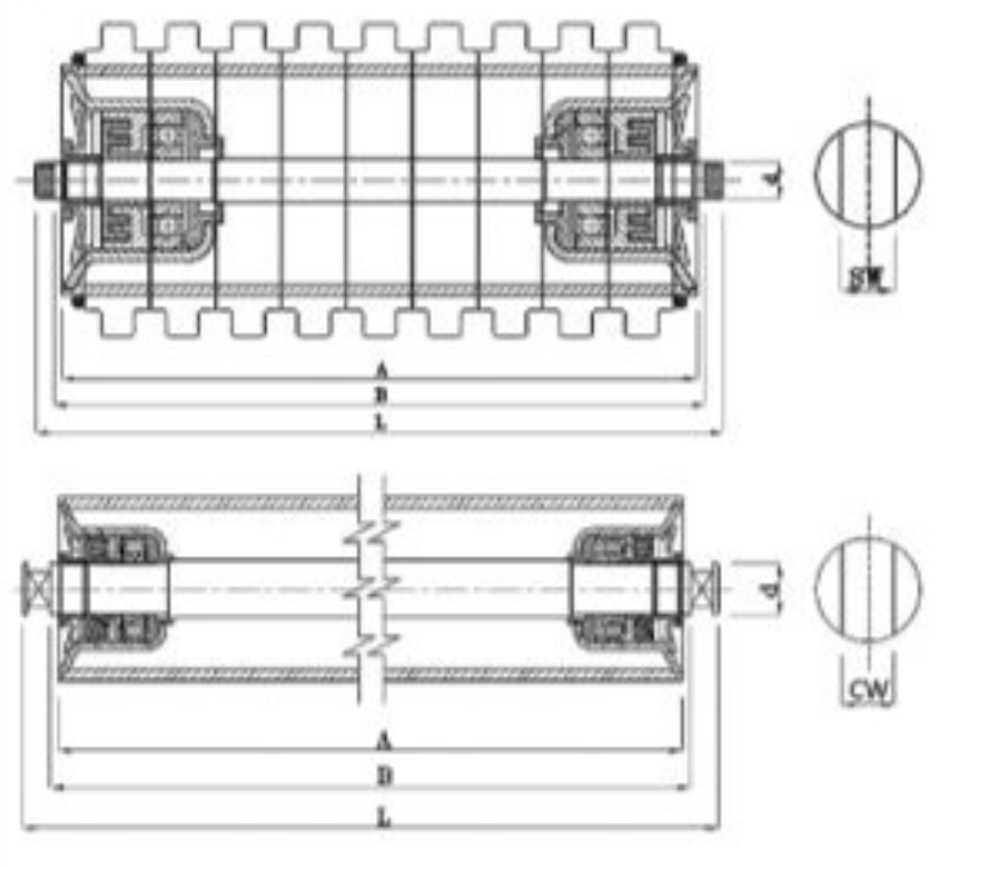

				d	=	30mm
				sw	=	22mm
All dimension are in mm.

Belt Width	Roller Dia	Flat Top / Return ldler					2 Roll Top Idler					3 Roll Top Idler
mm	mm	Dimension in mm			Wt. In Kg.		Dimension in mm			Wt. In Kg.		Dimension in mm			Wt. In Kg.
BW	D	A	B	L	Rotating Parts	Total	A	B	L	Rotating Parts	Total	A	B	L	Rotating Parts	Total
800	114.3	950	958	992	13.3	20.8	465	473	497	7.4	11.0	315	323	347	5.6	8.0
	139.7				17.4	25.0				9.6	13.2				7.1	9.6
	165.1				20.6	28.0				11.2	14.9				8.4	10.8
900	114.3	1050	1058	1092	14.5	22.8	530	538	562	8.2	12.4	350	358	382	6.0	8.8
	139.7				19.0	27.4				10.6	14.8				7.7	10.4
	165.1				22.4	30.8				12.5	16.7				9.0	11.8
1000	114.3	1150	1158	1192	15.7	24.9	600	608	632	9.0	13.8	380	388	412	6.4	9.4
	139.7				20.7	29.9				11.8	16.5				8.2	11.2
	165.1				24.4	33.6				13.8	18.6				9.6	12.6
1200	114.3	1400	1408	1442	18.7	29.9	700	708	732	10.3	15.8	465	473	497	7.4	11.0
	139.7				24.7	35.9				13.4	18.9				9.6	13.2
	165.1				29.2	40.4				15.8	21.3				11.2	14.9
1400	114.3	1600	1608	1642	21.1	33.9	800	808	832	11.5	17.8	530	538	562	8.2	12.4
	139.7				28.0	40.7				15.0	21.3				10.6	14.8
	165.1				33.0	45.8				17.7	24.0				12.5	16.7
1500	114.3	1700	1708	1742	22.4	35.9	850	858	882	12.0	18.8	565	573	597	8.6	13.0
	139.7				29.6	43.1				15.8	22.5				11.2	15.6
	165.1				35.0	48.5				18.6	25.4				13.2	17.6
1600	114.3	1800	1808	1842	23.6	37.9	900	908	932	12.7	19.8	600	608	632	9.0	13.8
	139.7				31.2	45.6				16.6	23.7				11.8	16.5
	165.1				36.9	51.2				19.6	26.7				13.8	18.6
1800	114.3	2000	2008	2042	26.0	42.0	1000	1008	1032	13.9	21.8	670	678	702	9.9	15.2
	139.7				34.4	50.4				18.2	26.1				12.9	18.2
	165.1				40.7	56.7				21.5	29.4				15.2	20.5
2000	114.3	2200	2208	2242	28.4	46.0	1100	1108	1132	15.1	23.6	750	758	782	10.9	16.8
	139.7				37.7	55.2				19.9	28.3				14.2	20.1
	165.1				41.3	58.8				23.4	31.9				16.7	22.6

Belt Width not covered under IS.
Rollers with 76.2 mm. 101.6 mm. 127 mm & 152.4 mm. Dia can be made as per Customers specific requirement.
Impact Idlers will have rubber Rings (Shore Hardness 65 ± 50) press fitted on the Ø76.1, 88.9/114.3 dia tube and locked at both ends.
Weight of Roller based on medium duty tube.
